MobiSim is a mobility management application, composed of many modules, using a pluggable architecture and a form generator in order to help researchers in the field of MANET (Mobile Ad-hoc NETworks) to deal with mobility in these networks. User can create “scenarios”, simulate them in graphical or batch modes, resimulate the traces, evaluate measures on the traces, create Excel diagrams by means of the evaluations, and finally test mobility model recognition algorithms on the traces. It supports plain text, NS format, and xml files for traces and contains many mobility models, which can be mixed together and configured graphically. All of these can be extended with an XML configuration file without any need to create additional GUI and recompiling thanks to the form generator and Parameter framework.

I developed the very first version of this software for my BSc final project under supervision of Dr. Rabiee and guidance from Mr. Mousavi in Sharif University of Technology in 2007. Besides, I want to thank Mr. Dabirmoghaddam for his codes in network analyzer tool. While this software is an AS IS one (The project had and has absolutely no fund so do not expect fast progress), I will appreciate if you have any idea to improve it. Just feel free to contact me at moshref@ce.sharif.edu.

The third version is out now Download

The workflow of using MobiSim is as follows:

The workflow of using MobiSim

In general, it has the following features:

  • Graphical model simulation
  • Scenario/Batch model simulation
  • Graphical scenario creation form
  • Implemented Models:
    • 3D model: Gets a model and moves nodes on a 3D environment
  • Algorithms to set power ranges for communication among nodes
  • Various parameterable maps: Disk, Square, Reflectable maps, Obstacle map, and maps for geographical dependant models
  • Graphical map designer : A graphical UI to configure maps which is very useful for Geographical dependant and complex models.
  • Plain text, XML trace, and NS-2 mobility trace files
  • Mobility and network based evaluators
  • Excel file export for evaluators
  • Mobility pattern recognition: classifying input trace files in the known models, find the similarity degree of real-world traces to each model
  • Form generator which enables fast development independant from UI concerns
  • and the most important feature is its modular architecture which enables the developers to easily add a new model, map, evaluator, and trace formats.

Download

What's new in version 3?

  • New GUI that simplifies user interaction
  • Tortoise model: A very general transitional model, where you program nodes through sequence and loops of transitions. The parameters for transitions (direction, speed, duration, pausetime) can be randomized using many random distributions.
  • Location initializer: Ability to use various random and deterministic algorithms to set initial positions of nodes
  • Add obstacles to maps: Currently supports rectangular obstacles but you can scale and rotate them.
  • Range algorithms: Now you can set ranges of communication during simulation
  • Improve trace visulazation: Zoom and Pan maps, new visualization methods and integrated codes.
  • New Evaluators
    • Recognize transition and evaluate: Transition length, Transition time, Transition direction change, Transition speed
    • intermeeting time
  • Fix bugs
  • Cleaned code

What's new in version 2?

  • Additional Models
    • Levy walk
    • Model composer: This is a model which acts as a composer of multiple models. Its usecases contains:
      • an emergency help group finding for injured people. While the injured people have a low speed model, the emergency group runs fastly
      • a battle field containing two groups some on the backup line and some on frontier behaiving differently
      • a battle field containing two groups with a line between them where they seldom pass over it
  • 3D simulation:
    • ability to define a 3D map describing the height of each point
    • ability to run available models in a 3D environment with the defined map
    • 3d representation for simulated scenarios
  • Graphical map designer : A graphical UI to configure maps
  • Additional trace formats: NS2 format
  • New evaluators
    • Clustering Coeficient
    • Interference
    • Location Distribution Variance
    • Neighborhood instability (Topology Change Rate)
    • Network Diameter
    • Repetitive Behavior
  • Sort algorithm for evaluators
  • Evaluation analyzer is more powerfull
    • more classification algorithms added
      • Fuzzy KNN Classification
      • Fuzzy Guassian KNN Classification (3 versions)
      • Nearest Distance
      • Group SVD
      • Nearest Distance (SVD)
    • a module for evaluating classification algorithms and feature ranking implemented
      • calculate the degree of membership of a trace to each model
      • calculate accuracy of each classification algorithms
  • Documentation
    • A developer guide for extending MobiSim is added
  • Fixed Bugs
    • FreeWay map enhancement
    • Manhattan map input data error fixed
    • Model initialization exception handling
    • UI change to have the setup button and start/pause command on hand
    • Models should be able to add columns in the trace files
    • More detailed installation documentation

Todo list

The next version, MobiSim v3 will have the following features:

  • Additional models:
    • Tortoise Model and Randomized Tortoise Model (This will be one of the strength points of MobiSim) DONE
    • SLAW model TODO
    • File model: Uses a trace file for simulation! (usable for leader model in group models) DONE
  • Ability to use various random and deterministic algorithms to set initial positions of nodes DONE
    • Ability to set fixed initial point for a node DONE
  • Trace Visualization:
    • Integrate codes of all trace visualization forms DONE
    • Add a new foot-print visualization with no fade but limited foot-print length DONE
    • Ability to see foot-print of nodes during simulation not only in visualization (resimulation) DONE
    • Zoom and Pan in trace all visualization panels DONE
    • new GUI DONE
  • Integrate TopoSim into MobiSim DONE
  • Change classifier package to recognize features space, length measures and classifer algorithms TODO
  • A new UI using Regular Expression to define variable parameters in scenarios TODO
  • 3D simulation:
    • 3d environment evaluators TODO
    • 3d distance difinitation in speed model TODO
  • New Trace formats
    • GPS TODO
  • Ability to define obstacles in the map DONE
  • Rewrite network analyzer package DONE
  • Save the last status of every window TODO
    • Save current simulation configuration DONE
  • Ability to use random functions instead of numerical values for parameters DONE
    • Seed management in random generator functions DONE
    • Ability to regenerate a simulation using a specific seed DONE
  • Change the GUI to improve the usability
    • A tree based GUI developed to decrease the complexity of parameter configuration panels DONE
    • A new initial GUI developed DONE
  • Exception handling in simulation initialization phase DONE
  • Define a new file component to be able to open multiple files that are not located in a folder TODO
  • New Evaluators DONE
    • Recognize transition and evaluate: Transition length, Transition time, Transition direction change, Transition speed
    • intermeeting time
  • Fix bugs:
    • Use double timestep to accurately manage reflection DONE
    • Remove Transition and Track class and make model movement functions simple (You can't believe how much code I have deleted!) DONE
    • Remove borderwidth, borderheight and borderradius from reflective maps DONE
    • Mobility based evaluators must be available in the list of Network based evaluators (merge two types of evaluators) DONE
    • Fix Random Direction model direction select algorithm

Publication

  1. S. M. Mousavi, H. R. Rabiee, M. Moshref, A. Dabirmoghaddam, "MobiSim : A Framework for Simulation of Mobility Models in Mobile Ad-Hoc Networks", The 3rd IEEE International Conference on Wireless and Mobile Computing, Networking and Communications (IEEE WiMob 2007), New York, USA, October 8-10, 2007.
  1. S. M. Mousavi, H. R. Rabiee, M. Moshref, A. Dabirmoghaddam, "Mobility Pattern Recognition in Mobile Ad-Hoc Networks", ACM International Conference on Mobile Technology, Applications and Systems (ACM Mobility Conference 2007), Singapore, 10-12 September 2007
  1. S. M. Mousavi, H. R. Rabiee, M. Moshref and A. Dabirmoghaddam, "Model Based Adaptive Mobility Prediction in Mobile Ad-Hoc Networks", The 3rd IEEE International Conference on Wireless Communications, Networking and Mobile Computing (IEEE WiCOM 2007), Shanghai, China, September 21-23, 2007.
  1. S. M. Mousavi, H. R. Rabiee, M. Moshref, A. Dabirmoghaddam, "Mobility Aware Distributed Topology Control in Mobile Ad-hoc Networks with Model Based Adaptive Mobility Prediction", The 3rd IEEE International Conference on Wireless and Mobile Computing, Networking and Communications (IEEE WiMob 2007), New York, USA, October 8-10, 2007.

ScreenShots

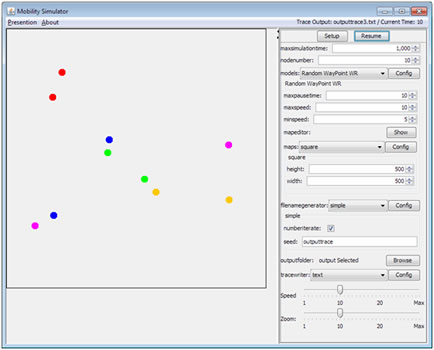

MobiSim: Mobility Generator

Mobility Generator Screenshot

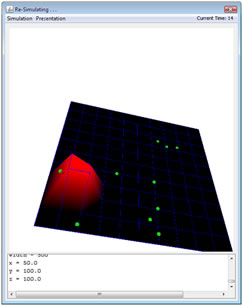

3D resimulator

3d resimulator window
